產品描述Product description
◆MK01系(xi)列是一(yi)款專用型線(xian)路(lu)板組(zu)件，當(dang)電源(yuan)突然斷(duan)開又(you)恢復(fu)時具有斷電重啟保護功(gong)能(電子式)，是為了滿(man)足新的歐洲EN60947標(biao)準針對小角(jiao)磨(mo)類工(gong)具零電壓保(bao)護的特殊要求而(er)特別設(she)計制造(zao)的，廣泛應(ying)用于各類手持式電動工(gong)具，如：150和180角(jiao)向(xiang)磨(mo)光(guang)機(ji)、拋光(guang)機(ji)等。
◆MK01 series are one special type PCB Assembly, with restart protection when the power supply is interrupted (Electronics Type),designed specially for angle grinders according to EN60947, fulfill the new requirement for zero voltage protection (or NVR), commonly for used in portable power-tools such as 150mm and 180mm Angle Grinders, Polisher Grinders, etc.
產品特征Features

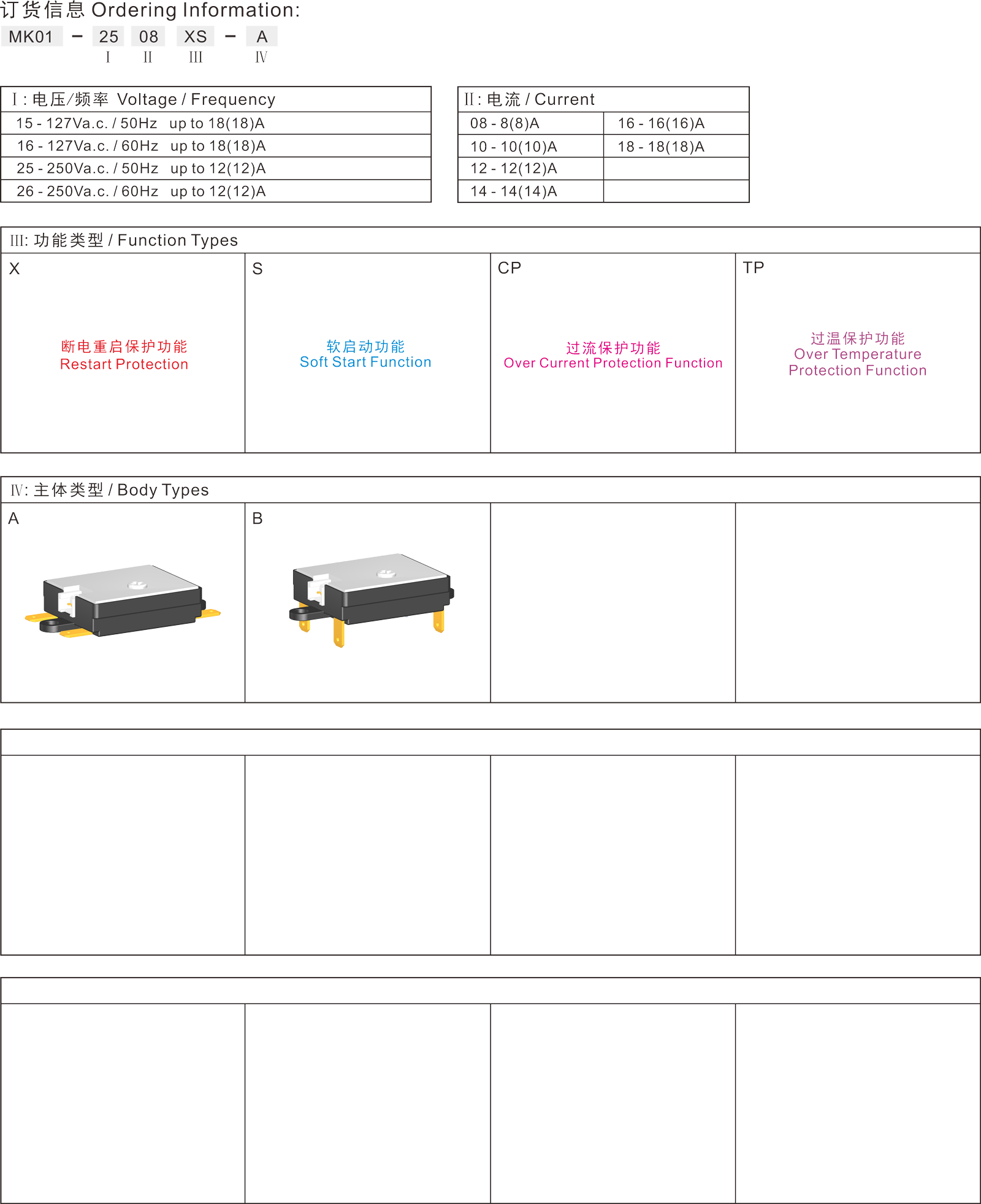

◆可選(xuan)帶以下(xia)功能 Optional following function types:
→斷電重(zhong)啟保護(hu)功(gong)能 Restart Protection(X)
→軟啟動功能 Soft Start Function(S)
→過流保護功能 Over Current Protection Function(CP)
→過溫保護功能 Over Temperature Protection Function(TP)
技術數據Technical data
→電(dian)氣耐久(jiu)壽命(ming) Electrical life endurance≥5E4
→最大(da)電流 Max. current at 250V12A
→最(zui)大電流 Max. current at 127V18A
→絕(jue)緣電阻 Insulation resistance≥7M Ohm
→基本介(jie)電強度(du) Dielectric strength of function500V
→加強(qiang)介電(dian)強(qiang)度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature-25°C~85°C
→阻燃等級(ji) FlammabilityUL 94V-0
→適(shi)用于(yu)II類防護(hu)器具 Suitable for appliances of protection class II

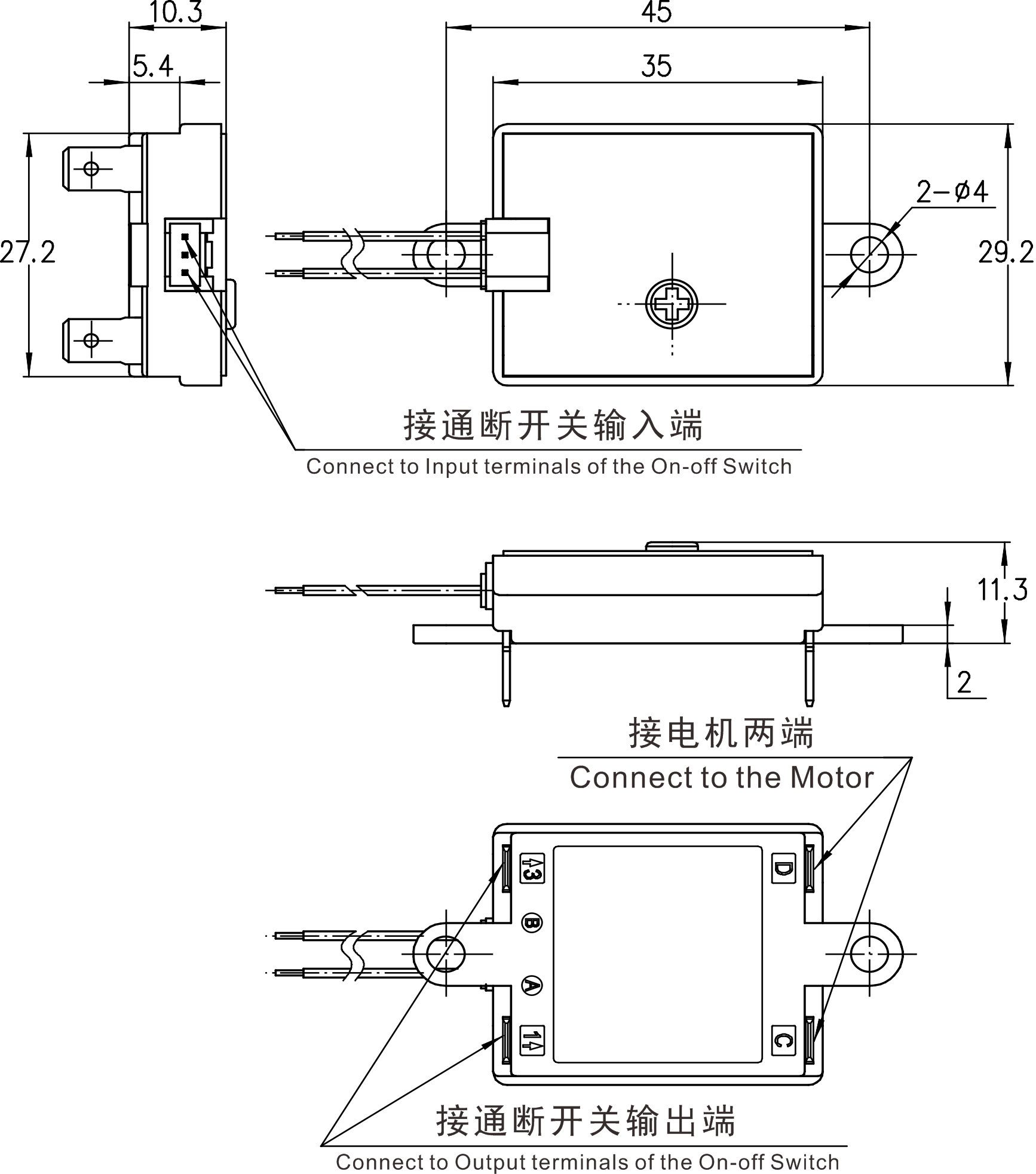

端子類型Terminals
◆輸入端/輸出端 Input side/Output side:
→插片端子 Plug-in terminals 4.8×0.8mm
◆線路板信號(hao)輸(shu)入端 PCB signal side:
→專用插座端子 Special socket terminal
電氣參數和認證 Electric Rating and Certification
