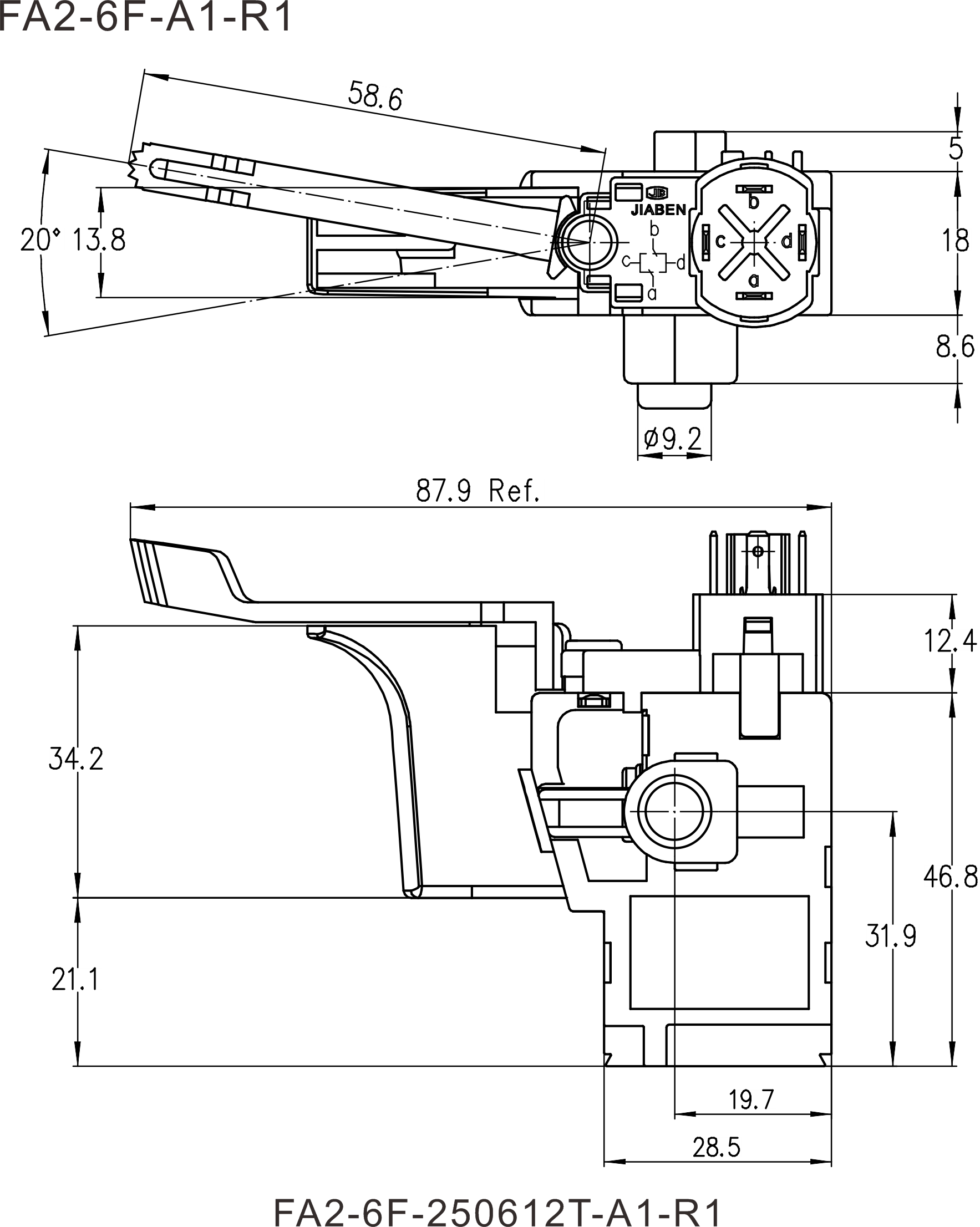

FA2-6F-A1-R1

FA2-6F防塵交流扳機調速開關

FA2-6F series Dustproof AC Variable Speed Trigger Switches

產品描述Product description

◆FA2-6F系(xi)列是一款專(zhuan)用型扳(ban)機電子調速開關(guan)，集成防塵功能，廣泛應(ying)用于各類手持式電(dian)(dian)動工具，如：電(dian)(dian)鉆、沖擊鉆、電(dian)(dian)錘、往復鋸(ju)(ju)(ju)、曲線鋸(ju)(ju)(ju)、馬刀鋸(ju)(ju)(ju)、攪拌器、拋光機(ji)(ji)和平板砂(sha)光機(ji)(ji)等。扳機(ji)(ji)、撥桿可根據(ju)客(ke)戶要求(qiu)進行定制。
◆FA2-6F series are one special type variable speed trigger switches, integrated dustproof, for used in portable power-tools such as: Drills, Impact Drills, Rotary Hammers, Reciprocating Saws，Jig Saws, Sabre Saws, Electric Mixers, Polishers, Orbit Sanders, etc.

產品特征Features

◆可選帶以下功能 Optional with following function:
→全波調速 Full-wave speed control
→半波調速 Half-wave speed control
→On-Off通斷功能 On-Off version
◆可選帶以下鎖定類型 Optional with following lock types:
→無鎖 No Lock
→閉合鎖定 Lock-on

技術數據Technical data

→機械耐久壽命 Mechanical life endurance ≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max.Inrush current at 250V48A
→最大沖擊電流 Max.Inrush current at 125V72A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→開關內部電子部分在相應使用中一并做過相關測試，本開關適合做二類器具開關使用.
→The electronics in the switches are to be tested together with the corresponding appliance, the switches are suitable for appliance of class II.

端子類型Terminals

◆輸入端 Input side:
→接線柱端子 Pillar terminals φ=3mm
◆輸出端 Output side:
→插入式端子可插入插片端子 2.8×0.8mm
→Push-in terminals for plug-in terminals 2.8×0.8mm
→換向盒端子 Reversing Box side:
→插套端子 Sleeve terminals 2.8×0.8mm

電氣參數和認證 Electric Rating and Certification

訂貨信息Ordering Information
