產品描述Product description
◆FDF系列是一款(kuan)通用型的(de)滑動(dong)開關，也(ye)叫推(tui)拉開關或推(tui)撥開關，廣泛應用于各類需(xu)要(yao)檔位控制的(de)電動(dong)工具和小(xiao)家電，如：熱(re)風(feng)槍、吹(chui)(chui)吸機、電吹(chui)(chui)風(feng)、電風(feng)扇、取暖器、料理機等。
◆FDF series are general type slide switches, commonly for used in power-tools and small home appliances such as Heat Guns, Blowers, Hair Dryers, Electric Fans, Electric Heating Apparatus, Cooking Machines, etc.
產品特征Features
◆可選帶以下功能 Optional with following function:
→雙極(ji)2檔(dang)位 Double Pole 2 Position (DP2P)
→雙極3檔位 Double Pole 3 Position (DP3P)
→雙極4檔位 Double Pole 4 Position (DP4P)
→雙極5檔位(wei) Double Pole 5 Position (DP5P)
技術數據Technical data
→機械耐久壽命 Mechanical life endurance≥5E4
→電氣耐久壽命(ming)Electrical life endurance≥1E4
→最大電流 Max. current at 250V10A
→最大電流(liu) Max. current at 125V16A
→接觸電(dian)阻(zu) Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電(dian)強度 Dielectric strength of function1500V
→加(jia)強介電(dian)強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~85°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器(qi)具(ju) Suitable for appliances of protection class II

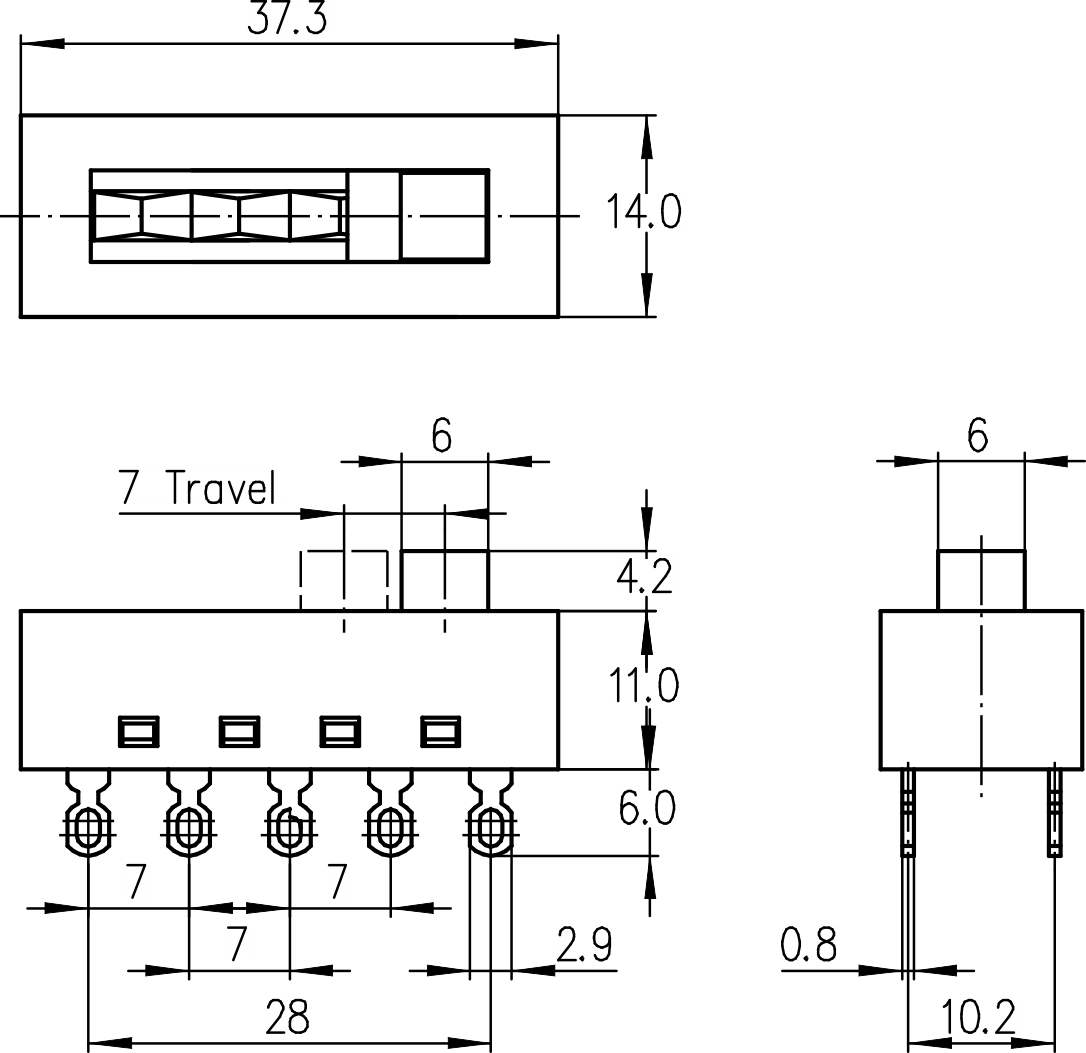

端子類型Terminals
◆輸入端/輸出端 Input side/Output side:
→焊接端子(zi) Soldering terminals 2.9×0.8mm
→線路(lu)板焊接(jie)端子 PCB Soldering terminals 0.8×0.8mm
→插片(pian)端子 Plug-in terminals 2.8×0.8mm
→焊接端子 Soldering terminals 2.8×0.8mm
電氣參數和認證 Electric Rating and Certification
