產品描述Product description
◆K1-6E系列是一(yi)款標(biao)準型的小型蹺板開關(guan)，也通稱(cheng)船型開關(guan)、波形開關(guan)等，有普通結構帶防護罩防塵防(fang)水和(he)內部防(fang)塵(chen)結構兩款可以選擇(ze)，用途極廣(guang)，可用于小(xiao)型電(dian)(dian)動(dong)工具，如：模(mo)具電(dian)(dian)磨、電(dian)(dian)動(dong)釘(ding)槍、手(shou)砂(sha)機(ji)、激(ji)光器等，也可用于各類家(jia)用電(dian)(dian)器及辦公設備，如：臺燈、電(dian)(dian)扇、打印(yin)機(ji)、游戲機(ji)、電(dian)(dian)腦電(dian)(dian)源、有(you)源音箱等等。
◆K1-6E series are one standard type rocker switch, optional with Protection Cap for dustproof and waterproof, or with inner dustproof structure, commonly for use in portable power-tools such as Hand Sanders, Die Grinders, Electric Nailers, Laser Actuators, etc. Also for used in small Home appliances and office equipments, such as Reading Lamps, Electric Fans, Printers, Game Players, Computer Power-supplys, Power Sound Box, etc.
產品特征Features
◆可選(xuan)帶以下功能 Optional with the function as follows:
→單(dan)極單(dan)擲 SPST (Single Pole Single Throw)
→單極(ji)雙擲 SPDT (Single Pole Double Throw)
→單極雙擲帶(dai)中間(jian)斷開 SPDT with Centre-off
→點動功能 Momentary act
◆可選帶以(yi)下附件 Optional with the accessories as follows:
→防護罩 Protection Cap

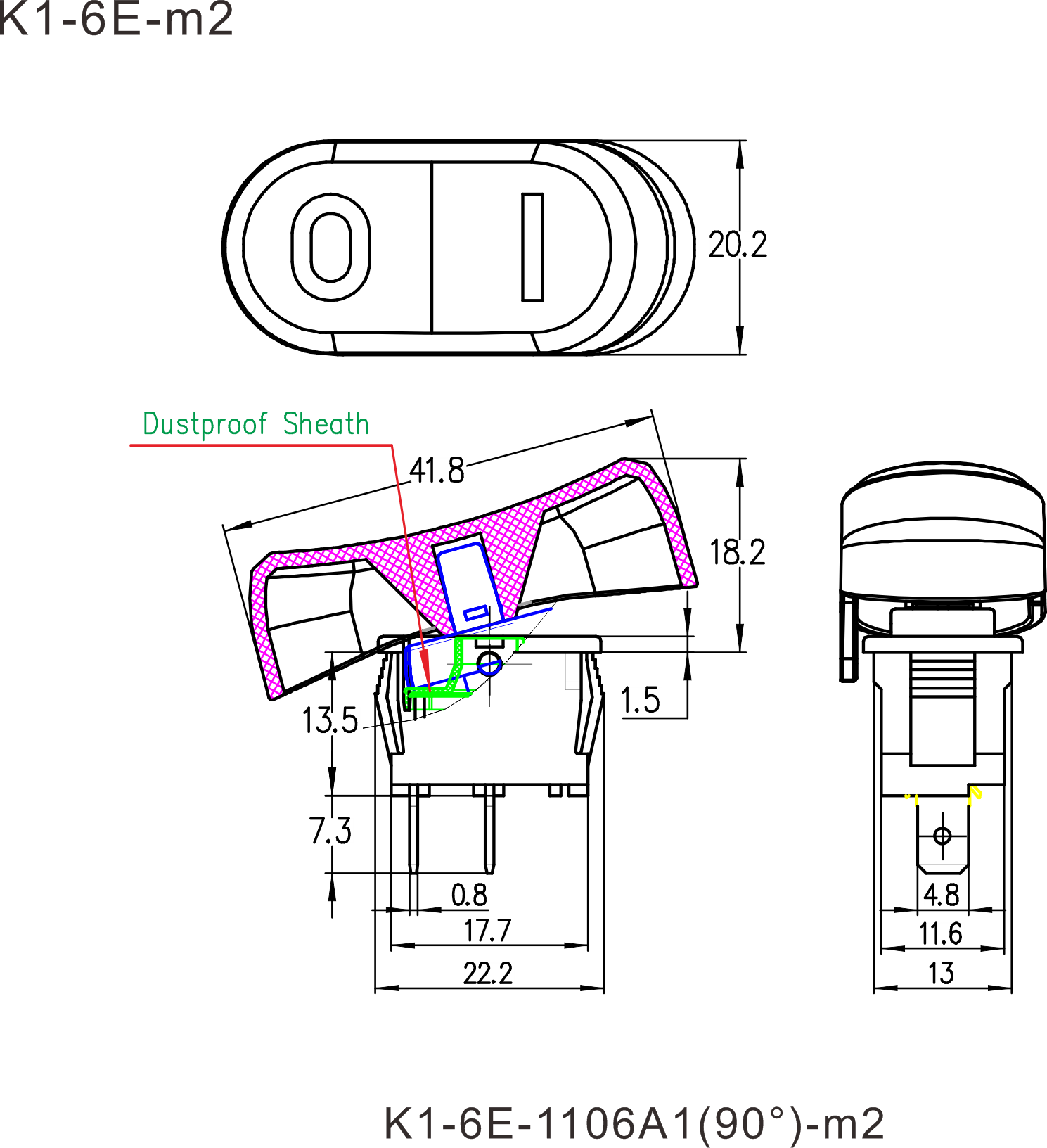

→內部防塵結構 Inner Dustproof Structure
→焊接帶端(duan)子導線 Soldering with leads and terminals
技術數據Technical data
→機械耐久壽命 Mechanical life endurance≥5E4/ 1E5
→電(dian)氣耐久壽命 Electrical life endurance≥1E4/ 5E4
→最大沖擊電流 Max. Inrush current at 250V48A
→最大沖擊電(dian)流 Max. Inrush current at 125V48A
→接觸電阻 Contact resistance≤30m Ohm
→絕(jue)緣(yuan)電阻 Insulation resistance≥7M Ohm
→基(ji)本介電(dian)強度(du) Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環(huan)境溫度 Ambient temperature0°C~85°C
→操動件(jian)溫(wen)度 Actuator temperature0°C~55°C
→阻燃等(deng)級 FlammabilityUL 94V-0
→防(fang)護等(deng)級 Protection typeIP40
→適用于(yu)II類防護器具(ju)Suitable for appliances of protection class II
端子類型Terminals
◆輸入(ru)端/輸出端 Input side/Output side:
→插(cha)片(pian)端子 Plug-in terminals 4.8×0.8mm
→焊接(jie)端子 Solder terminals
→線路(lu)板焊(han)接(jie)端子 PCB Solder terminals
★本產(chan)品榮獲實用新型專利(li)，專利(li)號：ZL202022095504.X
★Utility Model patented with the no. is ZL202022095504.X
電氣參數和認證 Electric Rating and Certification
